Detailed

Construction:
• CR impregnated biased fabric.
• Specially designed cushion rubber compound.
• High modulus low stretch special polyester cord.
• Specially designed cushion rubber compound.
• High modulus compression rubber.

Temperature Range:
-30°C to 110°C

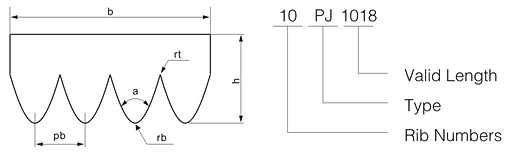

Type	Pb(mm)	Height(mm)	Angle	Length Range(mm)
PH	1.6	3	40°	330-3048
PJ	2.34	4	40°	330-3048
PK/DPK	3.56	6	40°	420-4000
PL/DPL	4.7	10	40°	420-4000
PM	9.4	17	40°	420-4000
